Eachine LCD5802S 5.8G 32CH 7 Inch Diversity Receiver Monitor with Build-in Receiver Battery


Brand Name: Eachine

Item Name: LCD5802S Monitor

Built-in 5.8Ghz Dual diversity receiver automatically for best reception

Built-in 2CH 5.8Ghz AV output and 1CH AV input

Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V

Work status OSD display : RSSI indication ; Battery indicator;Channel indication

A key to automatic signal search

Support Chinese and English menu

Screen size:7”

Screen type:TFT LCD Screen/long life, LED backlight

Resolution: 800*480

Brightness: 600cd/m2

View Angle:140/120degree (Horizontal/Vertical)

Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)

Working Voltage: DC 7~16V

Power Consumption: max 650 mA @12V

Battery charging current : 850mA @12V ( max )

Working temperature: -10℃~+ 65 ℃

Connectors:RP-SMA female(outer needle)

Antennas Connectors:RP-SMA male (inner hole)


Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching

Dual buffered AV outputs

Can receive 2 different channels at the same time

Not affect by 2.4GHz R/C Radios

AV Receiver with Diversity inputs

Small, light weight, durable

4 Bands and total 32 Channels

Built-in battery , easy to carry and outdoor use

A key to automatic signal search,Simple operation

Work status OSD display:Always be aware of the device working condition.

Band and Channel selection

     CH      CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8


A 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ

b 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ

C 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ

d 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ

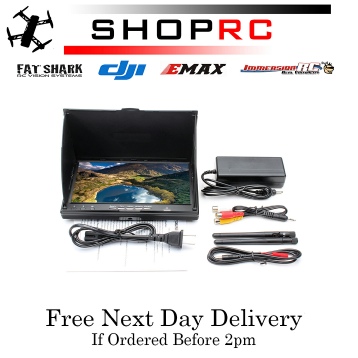

Package Included:

1 x 7" LCD Screen Receiver Monitor with built in Rechargable Battery

2 x 5.8G Antenna

2 x AV Cable

1 x Charger

Eachine LCD5802S
