Body size: 155x144x113 (mm)

Weight: 248g (battery not including);Super-light design

Great PCBA placing: release the weight strength to face and still have advantage to use Omni/Linear antennas at the same time.

Conceal input ports design: DC and V-in input ports are just beneath the goggles body.

Cable placing: VR008 offer cable mount for better placing and protecting power cable.

Comfortable fit: nice skin-friend face sponge mask design

Head strap: adjustable 3 points head strap

Working temperature:  -10℃-80℃

Storing temperature:  -20℃-90℃



Size: 4.3 inch

Resolution: 480x272

Brightness: 500cd/m2 high brightness, outdoor usage

View angle: wide visible angle, 0/120 degree (Horizontal/ Vertical)

FOV: right 80 degree. Big Screen (Offer bigger screen than normal video goggles)



Amplify time: 2.8x lens

Distortion: no distortion

Material: PMMA

Transparence: Up to 92% light in, real high transparence rate, less disturbance for viewing screen



DC Power input range: 7-23V DC accepted, wide range power input

Battery: 2S (7.4V) and 3S (11.1V) are the most recommenced power source for VR008 (package doesn't include batteries)

Battery life: each full charge you can enjoy VR008 for:

                    2S 520mAh around 3 hours working time

                    3S 2200mAh more than 18 hours working time, Fly All Day @ One Charge

Notice: the working hours vary due to different type and performance of battery

Power consumption: about 220mA@7.4V; about 150mA@12V

Super Power Saving


DUO design:

Amplify circle engage best performance of RX and use two types of antennas Omni/ Linear Polarized antennas) at the same time.


Video input (V-in):

Video input: 75Ω, composite video signal / CVBS / AV in


Package included:

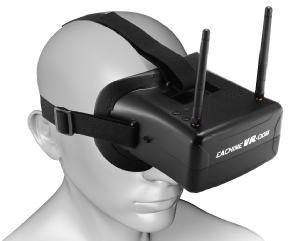

1 x Eachine VR008 duo antennas 4.3 inch FPV goggles

2 x 3dB 5.8GHz FPV antenna

1 x video input L cable

1 x power input conversion cable (0.8 meter 3.5mm L connector - JST  7-23V DC in / 2S & 3S recommended)

1 x manual


Product Specification:

Body size : 155x144x113 (mm)

Weight : 248g (battery not including)

Screen Size : 4.3 inch

Resolution : 480x272

Lens Amplify time : 2.8x lens

Power consumption : about 220mA@7.4V; about 150mA@12V

Frequencies : 5.8GHz

Channel : 40ch, including RaceBand

Video input : 75Ω, composite video signal / CVBS / AV in

Battery : 2S (7.4V) and 3S (11.1V) Battery(Not included)

Eachine VR008
